Strong centrifugal force long service life solid bowl disc stack separator

Product description

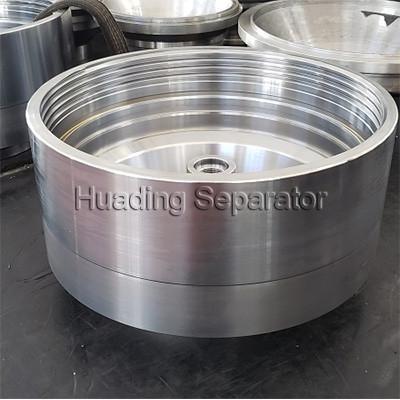

The bowl of disc centrifuge has a set of disc-shaped parts overlapped with each other. It is an important component of disc centrifuge. There is a small gap between the disc and the disc. The suspension is added to the bowl by the feeding tube located at the center of the bowl. When the suspension flows to the gap between the discs, the solid particles settle on the disc under the action of centrifugal force to form sediment. The sediment slides along the disc surface and falls off the disc and accumulates in the diameter of the bowl. The separated liquid discharges the bowl at the outlet.
The main function of disc centrifuge is to shorten the settling distance of solid particles and enlarge the settling area of the bowl. The production capacity of the separator is greatly improved by installing discs in the bowl. Solids accumulated in the drum need to be artificially cleared or discharged from the bowl through the slag discharge mechanism when the separator shuts down.

Application

-Vegetable oil: vegetable oil purification...

-Pharma: fermentation broth clarification; enzyme separation; liquid medicine clarification...

-Juice: Pectin separation; juice purification; pulp removing...

-Mineral oil: solid impurities clarification...

Main parameter

Advantage

-High rotataion speed

-Low noise

-No pollution

-Low vibration

-Stable operation

-Strong centrifugal force

-The professional designed centripetal pump system has many advantages such as stability outlet pressure, large regulating sphere, easily operating and so on.

Project application

Huading Separator, full name:Yixing Huading Machinery Co.,Ltd since 1954,is one of the market leaders in the field of centrifugal separation technology.

The company has over 60 years experience in the design and manufacturing of centrifugal separation equipment. Complete systems, customized for specific applications, can be provided in a compact, fully tested, skid-mounted assembly. The company's equipment, systems and services are dedicated to assisting customers in optimizing the performance of their processes. The solutions help customers to clarify, concentrate, and separate products in production.

Separators and decanters from Huading Separator are used in food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering and wastewater treatment etc.

Huading Separators's organization works closely with customers to help them stay ahead in their business line.
