GF75/105/125/150 3phase tubualar centrifuge for solid liquid liquid
separation
Product description
GF series Tubular Centrifuge from Huading Separator is a high speed
solid bowl type machine for continuous separation of two immiscible
liquids with density difference. This centrifuge is also used to
separate small quantity of impurities from liquids. It is designed to separate two immiscible liquids of differing

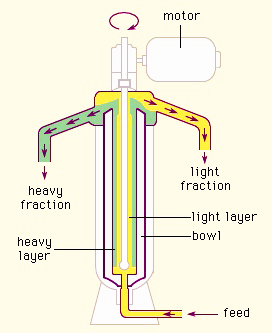

densities. The high centrifugal force generated causes the high
density liquid to migrate toward the tube wall while the lower
density liquid is displaced to the center of the tube. The
separated liquids are then discharged at the top of the tube with
dedicated outlets
Operation principle
The tubular centrifuge is a kind of centrifugal equipment with very
high separation factor. The minimum separation particle is 1
micron. It is especially suitable for extraction, concentration and
clarification of materials with little difference in the specific
gravity of liquid and solid phases, fine solid particle size, low
solid content and strong corrosive media. It is mainly used for
solid liquid separation and liquid liquid solid separation of
materials in such industries as food, chemical industry, beverage,
biological pharmacy, blood products, etc. The machine has such
features as good separation effect, high output, small floor space
and convenient operation
Product parameter
| Model | Bowl | Passing capacity(kg/h) | Motor power(kw) | Motor speed(r/min) | Machine weight
(kg) |
| Diameter(mm) | Height(mm) | Volume(L) | Rotation speed(r/min) | Separation factor |
| GQ/GF 45 | 45 | 280 | 0.45 | 25000-50000 | 60000 | 150 | 0.75 | 6000-12000 | 90 |
| GQ/GF 75 | 75 | 450 | 2.7 | 19000-21000 | 22500 | 500 | 1.5 | 2880 | 300 |
| GQ/GF 105 | 105 | 730 | 6 | 16300-19000 | 21000 | 1500 | 2.2 | 2880 | 480 |
| GQ/GF 125 | 125 | 730 | 7.4 | 14000-16000 | 18000 | 2000 | 3 | 2880 | 520 |
| GQ/GF 137 | 137 | 730 | 9 | 14000-15000 | 17000 | 3000 | 3 | 2880 | 550 |
| GQ/GF 142 | 142 | 730 | 10 | 14000-15000 | 17000 | 3000 | 3 | 2880 | 550 |
Advantages
- High bowl rotation speed and high separation factor, better
separation efficiency
- Suitable for the separation of suspension with small solid
particles and small density difference
- Easy to operation
Company introduction
Huading Separator has been at the forefront in the field of
centrifugal separation technology for more than 60 years,
established in 1954, is the leader in mechanical separating
technology in China. The machines produced by Huading Separator are
used in a wide range of areas – in the beverage and dairy
industries, in recovering and processing oils and fats, as well as
in chemicals, pharmaceuticals, biotechnology and starch technology.
Other applications include marine engineering, energy, oil fields,
water treatment, such as waste water treatment, sludge dewatering,
etc
