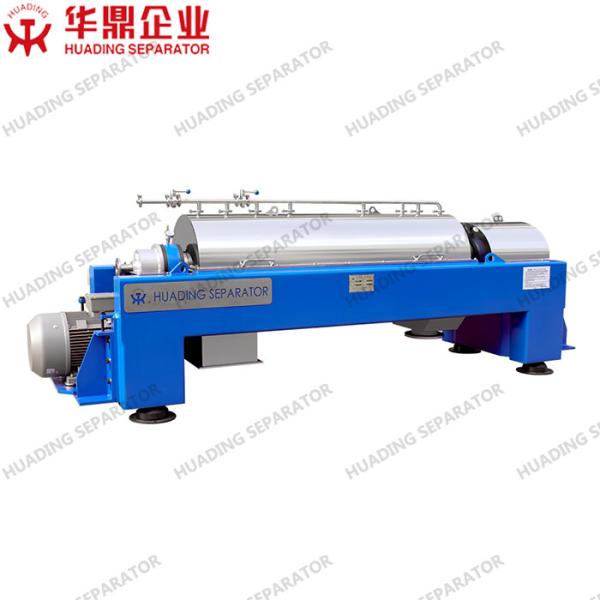

Full automatic decanter centrifuge for tea polyphenols extraction
double motor driving
Product description
Tea polyphenols as the active components extracted from tea have
many functions, applied in many fields, such as food industry,
cosmetic, medicine, etc. There are several extraction methods for
the tea polyphenols, the common methods are solvent extraction and
water extraction.
Huading separator and decanter has been widely applied in the tea
polyphenols extraction process. The decanter centrifuge and disc
separator from HUADING SEPARATOR can meet different process
requirements, automatic operation, explosion-proof is optional,
good separation effect, low energy.
Product features
- All the parts contact with the feed material are made by high grade
stainless steel, such as double duplex stainless steel
- The operation is control by PLC module, can release intelligent
automatic operation , continuous and automatic feeding and
discharging
- Two motor and two frequency inverter drive system, realize
differential speed of bowl and screw stepless regulation and energy
return
- The surface of screw and discharging port is hardened, such as hard
alloy and ceramic, better protection for the parts prone to wear
and tear, for a long service life
- Multiple safety protection: bowl speed and differential speed
detection, over-vibration protection, motor overload and overheat
protection, bearing temperature monitoring, conveyor torque
protection and gas-tight explosion-proof protection.
Product parameter
| Product | 2phase decanter centrifuge |
| Application | Plant extraction |
| Capacity | 0.5-20 T/H |
| Material | SUS304/316L, Double duplex stainless steel |
| Control and operation | PLC control, full automatic |
| Discharging | Continuous and automatic |
| Motor | Double motor driving, 4-90 kw |
| PLC | SIEMENS |
| Motor brand | ABB |
| Frequency | ABB |
| Bearing | SKF/FAG |
| Weight | According to the models |
| Dimension | According to the models |
Company introduction
Huading Separator has been at the forefront in the field of
centrifugal separation technology for more than 60 years,
established in 1954, is the leader in mechanical separating
technology in China. The machines produced by Huading Separator are
used in a wide range of areas – in the beverage and dairy
industries, in recovering and processing oils and fats, as well as
in chemicals, pharmaceuticals, biotechnology and starch technology.
Other applications include marine engineering, energy, oil fields,
water treatment, such as waste water treatment, sludge dewatering,
etc
What we manufacture
Disc separator
| Solid retaining type Nozzle type Solid ejecting type |
| Decanter centrifuge | 2&3 phase Overflow baffle type Adjustable centrifugal pump type |
| Tubular centrifuge | GQ/GF |
| Filter | Vertical pressure leaf filter Horizontal pressure leaf filter Bag filter Multi-bad filter |
| Mixer | Centrifugal mixer Disc mixer Multi-effect mixer |
FAQ
1.Who you are?
Huading Machinery are separators and decanters manufacturer from
1954, we have more than 60 years experience in the design and
manufacturing of centrifugal separation equipment. Huading
separators and decanters are widely applied in industry of food,
beverage,pharmaceutical.chemical,marine,oilfield,energy,mining,mechanical
engineering and waste water treatment etc.
2.How do you guarantee the quality?
We are a professional manufacturer with experience of more than 60
years. We have the most advanced equipment and first-class workers.
Each of our processing procedures is strictly inspected and has the
test report. We also accept FAT testing from customers.
3.How long is the warranty period?
One year after the machine arrives customer site
4. Do you have technicians for installation, commissioning and
training?
After-sales service is available, we can send our technicians to
customer site for installation,commissioning and training, also can
guide online through video
5.What's the payment terms you can accept?
Generally T/T, L/C at sight
