CE Approved Decanter Centrifuge Separators 720mm Self Clean Orange Juice

Ask Lasest Price
Brand Name :	huading
Model Number :	sksd
Certification :	CCCI
Price :	15000usd
Supply Ability :	100per/day
Delivery Time :	60work days

Add to Cart

Product Details
Company Profile

CE Approved Decanter Centrifuge Separators 720mm Self Clean Orange Juice

CE approved self clean orange juice centrifuge

Features:

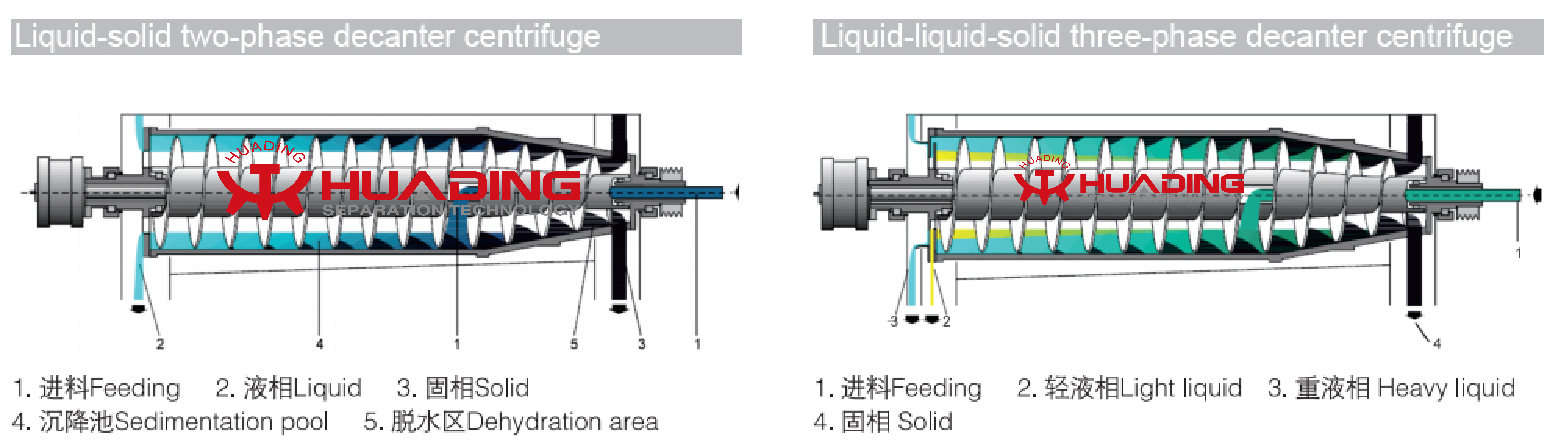

 The rotating part of these decanter tricanter centrifuges is mounted on a compact, in-line frame, with main bearings at both ends. Vibration dampers are placed under the frame. The rotating part is enclosed in a casing with a cover and a bottom section with integrated outlets for both solids and the liquid being removed.
 Quality assurance:
 - JB/T502-2015 Chinese national standard of decanter centrifuge
 - 2006/42/EC Machinery Directive
 - 2014/35/EU Low voltage Directive
 - 2014/30/EU Electromagnetic compatibility Directive
 - Quality management system of ISO9001-2000

bowl diameter	186-720mm
bowl length	744-3000mm
bowl speed	2000-6000rpm
G-forcee	1600-4000g
weight	600-8000kg
primary motor	5.5-132kw
secondary motor	2.2-45kw
material	AISI 304/316/316L/duplex steel
noise	＜88db
product keywords	industry decanter centrifuge

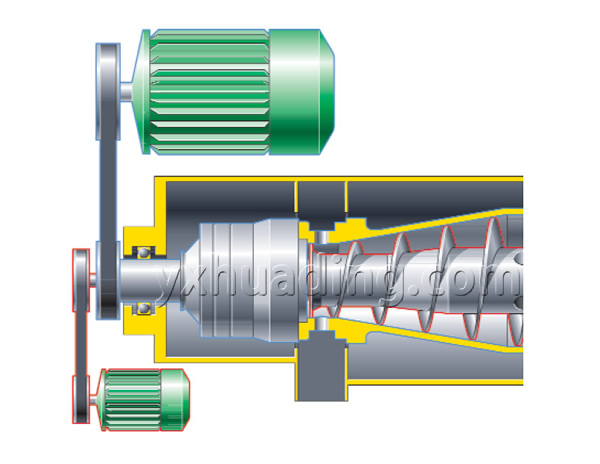

 One motor drive, this is a very simple design and are therefore cheap to purchase and operate. One motor drive are used when the solids volume is constant, the solids are easy to convey and the requirements regarding the residual water content of the solids are not very stringent, in other words, bowl and differential speed regulating facilities are not necessary. The input shaft of the drive is set in motion by the main motor via a second belt drive. This generates the
 differential speed as a function of bowl speed and gear transmission. This can be easily changed by replacing the belt pulleys.

Two motor drive, it enable the differential speed to be regulated cost-effectively under good operating conditions; wide regulating ranges are possible. The secondary motor sets the input shaft of the gear in motion and generates the differential speed as a function of bowl speed and gear transmission. The differential speed can easily be regulated
 by changing the motor speed. Two motor drive are used whenever solid volumes fluctuate significantly, when solids are conveyed under difficult conditions and when particularly stringent requirements are applicable with regard to residual water content.

Hydro drive, it works in a way which is similar to that of the two motor drive. The
 difference is to be seen in the design.Instead of the mechanical gear, a rotating hydromotor is installed; this is supplied with
 hydraulic regulation by a pump unit. Because the differential speed is proportionate to the conveyed quantity of oil, automatic
 regulation can be provided without any problem.

1) Q: How can we visit your factory?
A: You are from abroad, and you are sitting at Shanghai Airport. If you come from a domestic city, fly or train directly to Yixing Station. We will pick you up at the train station.
2) Q: How do you guarantee the quality of your products?
A: Our company is an enterprise with more than 60 years of experience, and implements strict business policies. Advanced processing machines ensure the accuracy of all parts, workers have operating licenses, parts have been processed many times, and transmission and electrical components use internationally renowned brands. A series of tests and inspections are carried out throughout the production state.
3) Q: What payment methods does your company accept?
A: We accept most payment methods, but mainly T/T.
4) Q: How long is the warranty period of your products?
A: 12 months.
5) Q: I have not done business with your company before, how can I trust your company?
A: Our company has been in Alibaba for 14 years, providing various certificates
6) Q: What are your company's shipping terms and delivery time?
A: Each is customized 60-90days
7) Q: Do you give any discount?
A: I will definitely try my best to help you get the best deal
